WAKE: Watermarking Audio with Key Enrichment

TL;DR

WAKE is the first key-controllable audio watermark framework, which aims to embed watermarks into audio and decode the embedded watermarks using specific keys, as shown in the following Figure. If an incorrect key is used, it will be impossible to decode the correct watermark, substantially enhancing the watermarking system's security and scalability while also fulfilling personalized watermarks. Notably, WAKE can achieve multiple watermark embeddings and corresponding watermark decoding based on the key used during embedding. WAKE outperforms the current state-of-the-art audio watermarking models in watermarked audio quality and decoding performance.

WAKE's overall process

Interpolate start reference image.

Tests on the dataset used

We randomly selected a few from the test set of the dataset used.

LibriSpeech FMA AudioSet CommonVoice
Origin Audio
AudioSeal (single watermark)
WavMark (single watermark)
WAKE(proposed) (single watermark)
AudioSeal (double watermark)
WavMark (double watermark)
WAKE(proposed) (double watermark)

Other Data

Sampled from outside the train/test dataset.

Sample 1 Sample 2 Sample 3
Origin Audio
AudioSeal (single watermark)
WavMark (single watermark)
WAKE(proposed) (single watermark)
AudioSeal (double watermark)
WavMark (double watermark)
WAKE(proposed) (double watermark)

Watermarked Audio with different Watermark Times(English Speech)

In this experiment, we add different watermarks to a piece of audio sampled from LibriSpeech using AudioSeal, WavMark and WAKE(proposed) several times.

Origin Audio 1 2 5 10
AudioSeal
WavMark
WAKE(proposed)

Watermarked Audio with different Watermark Times (music)

In this experiment, we add different watermarks to a piece of audio sampled from FMA using AudioSeal, WavMark and WAKE(proposed) several times

Origin Audio 1 2 5 10
AudioSeal
WavMark
WAKE(proposed)

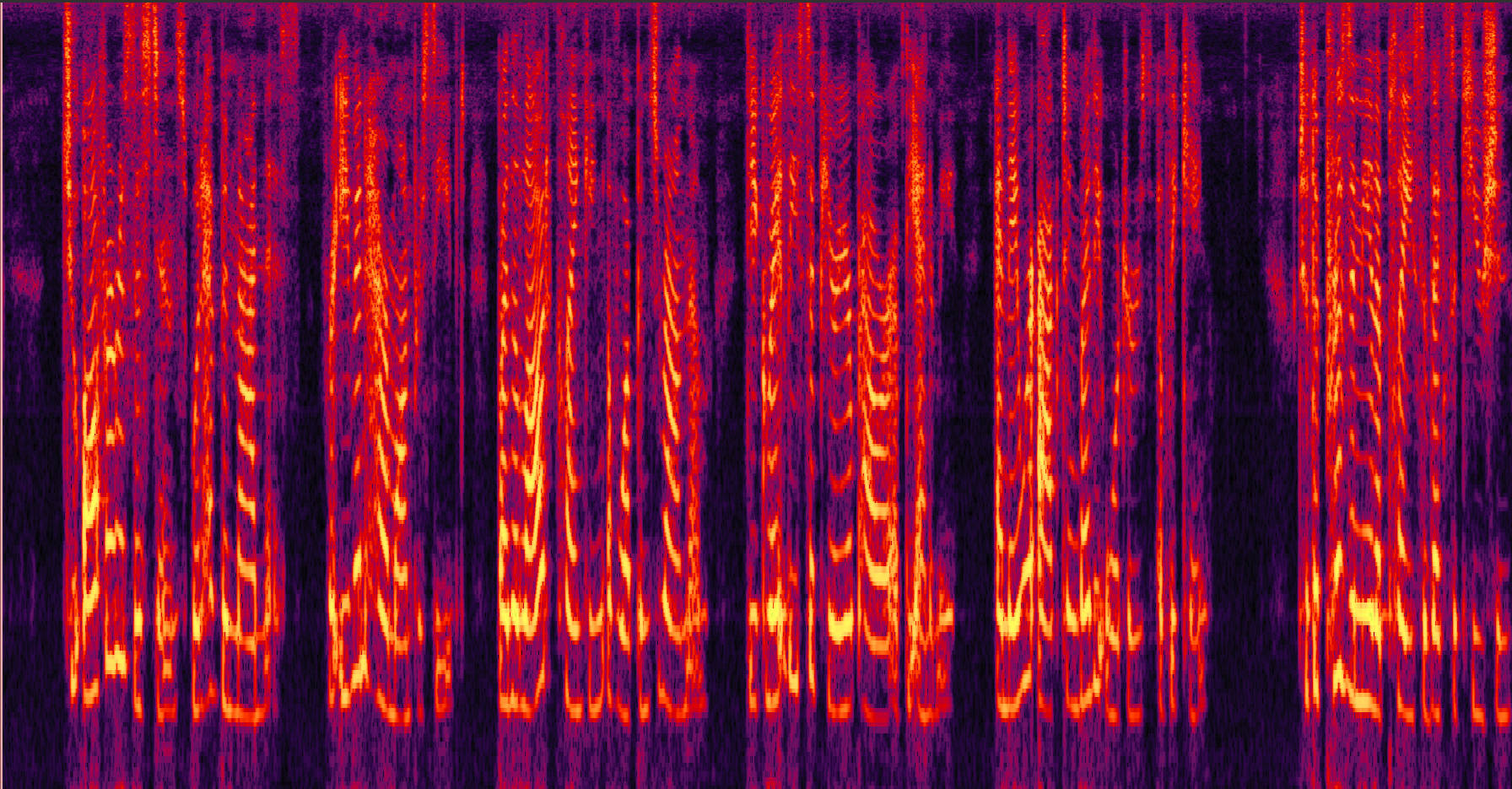

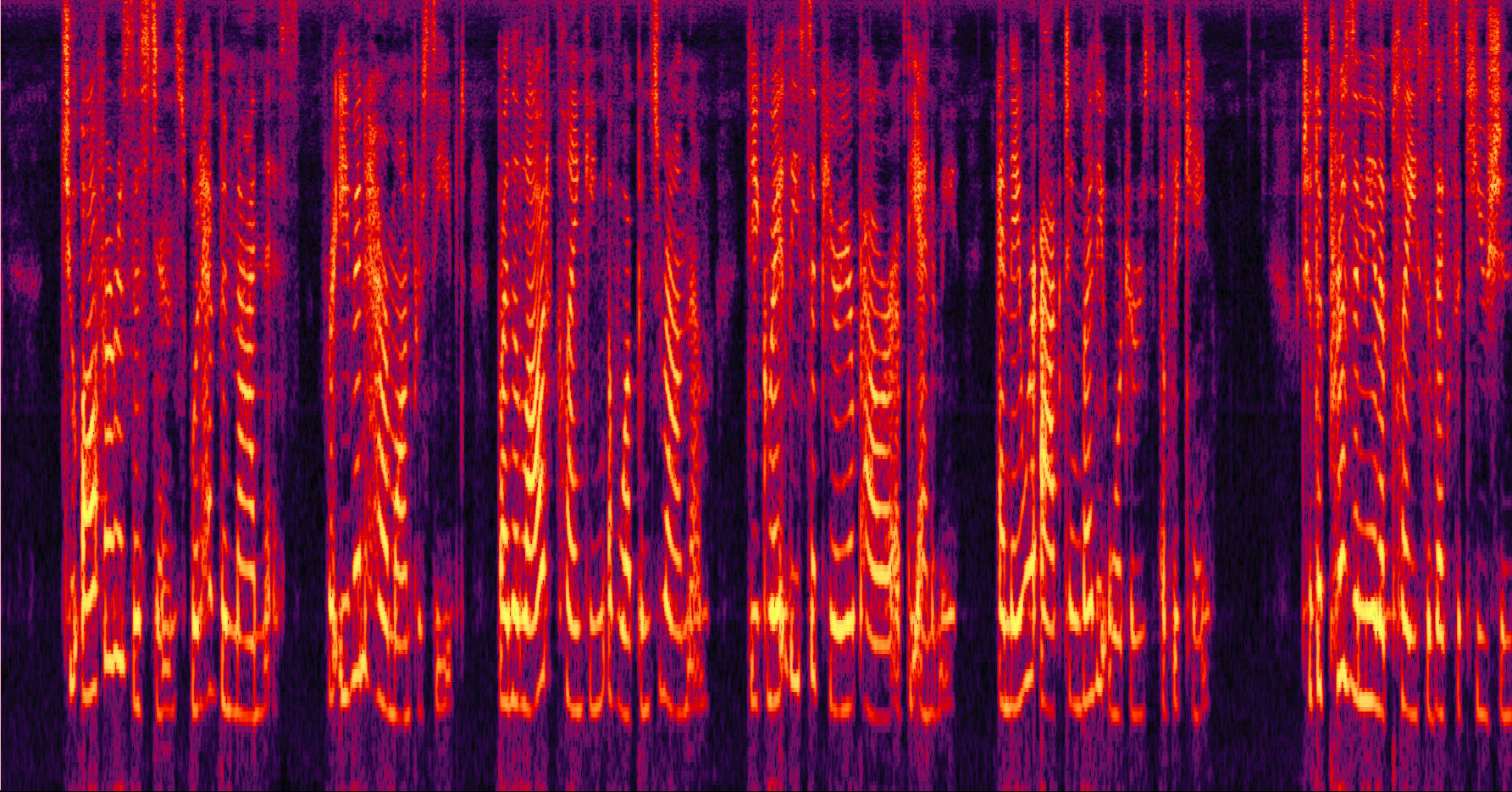

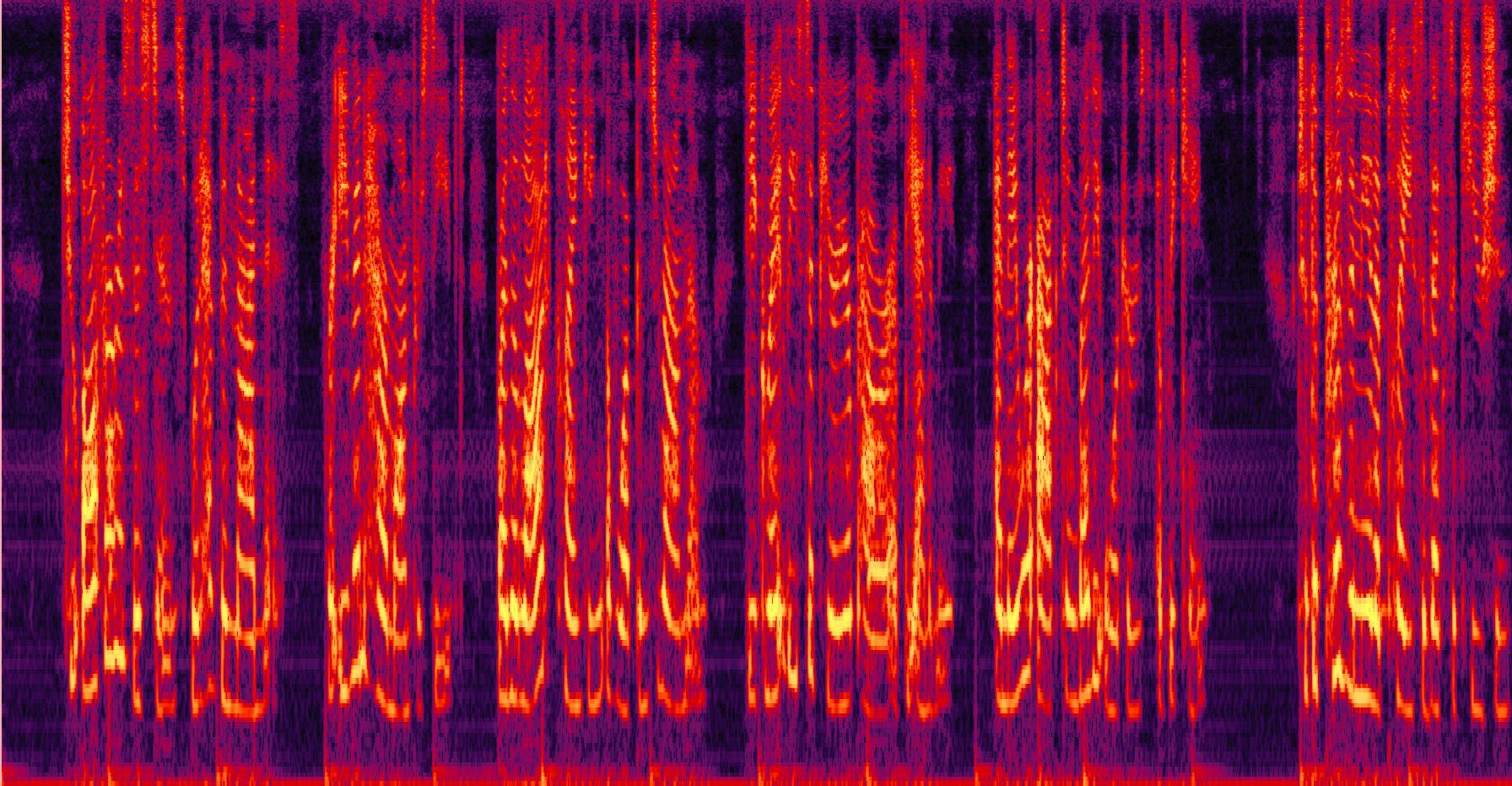

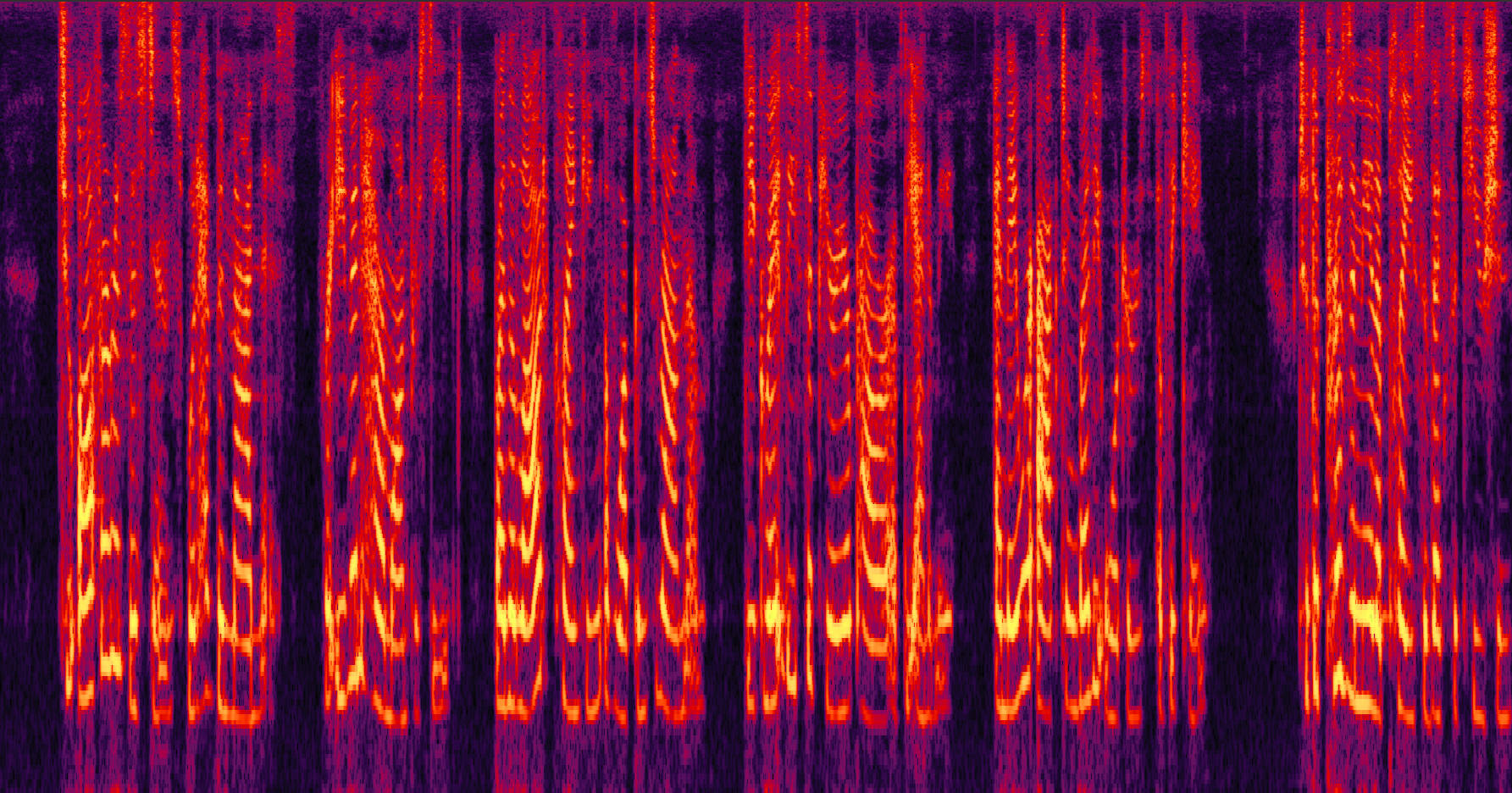

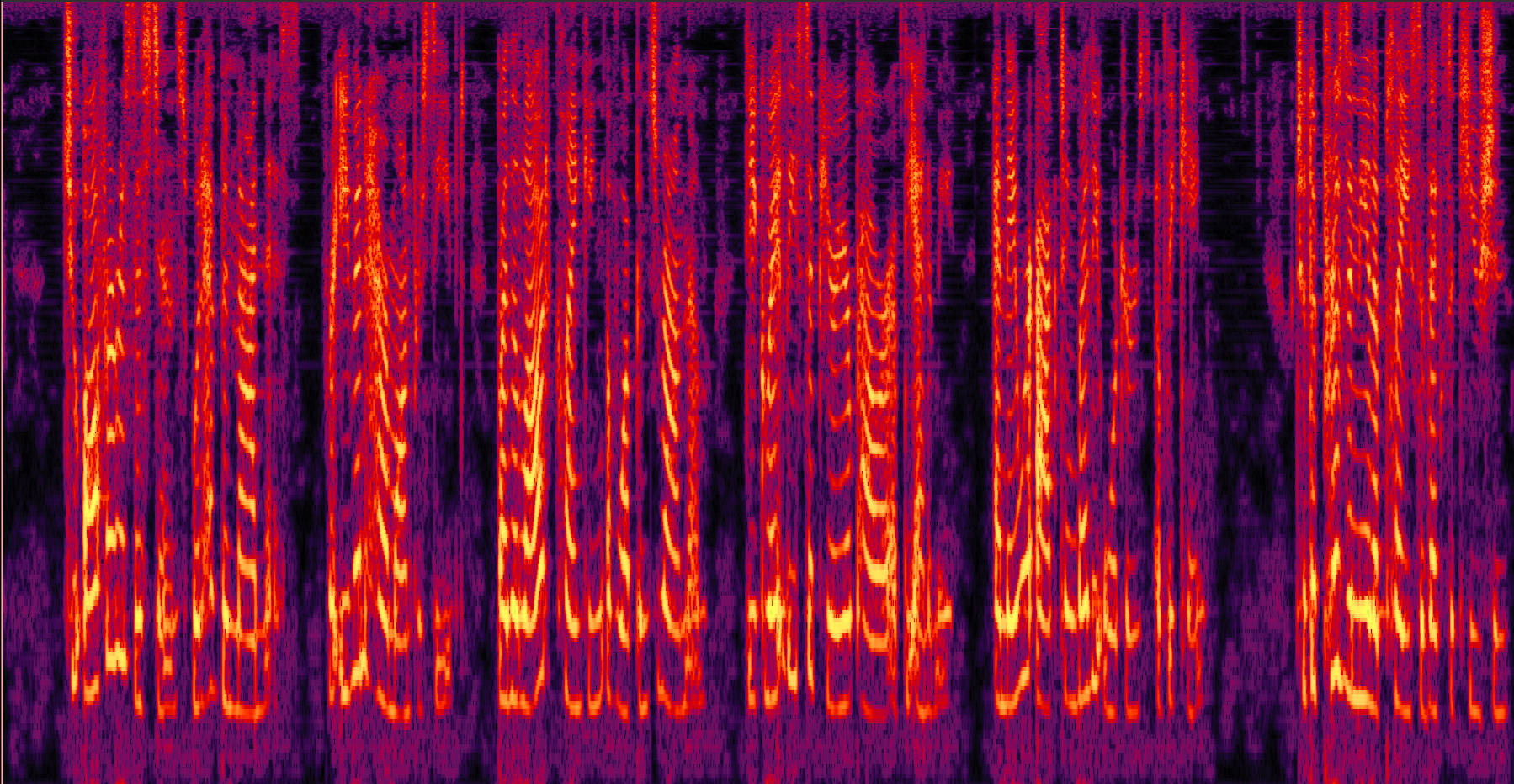

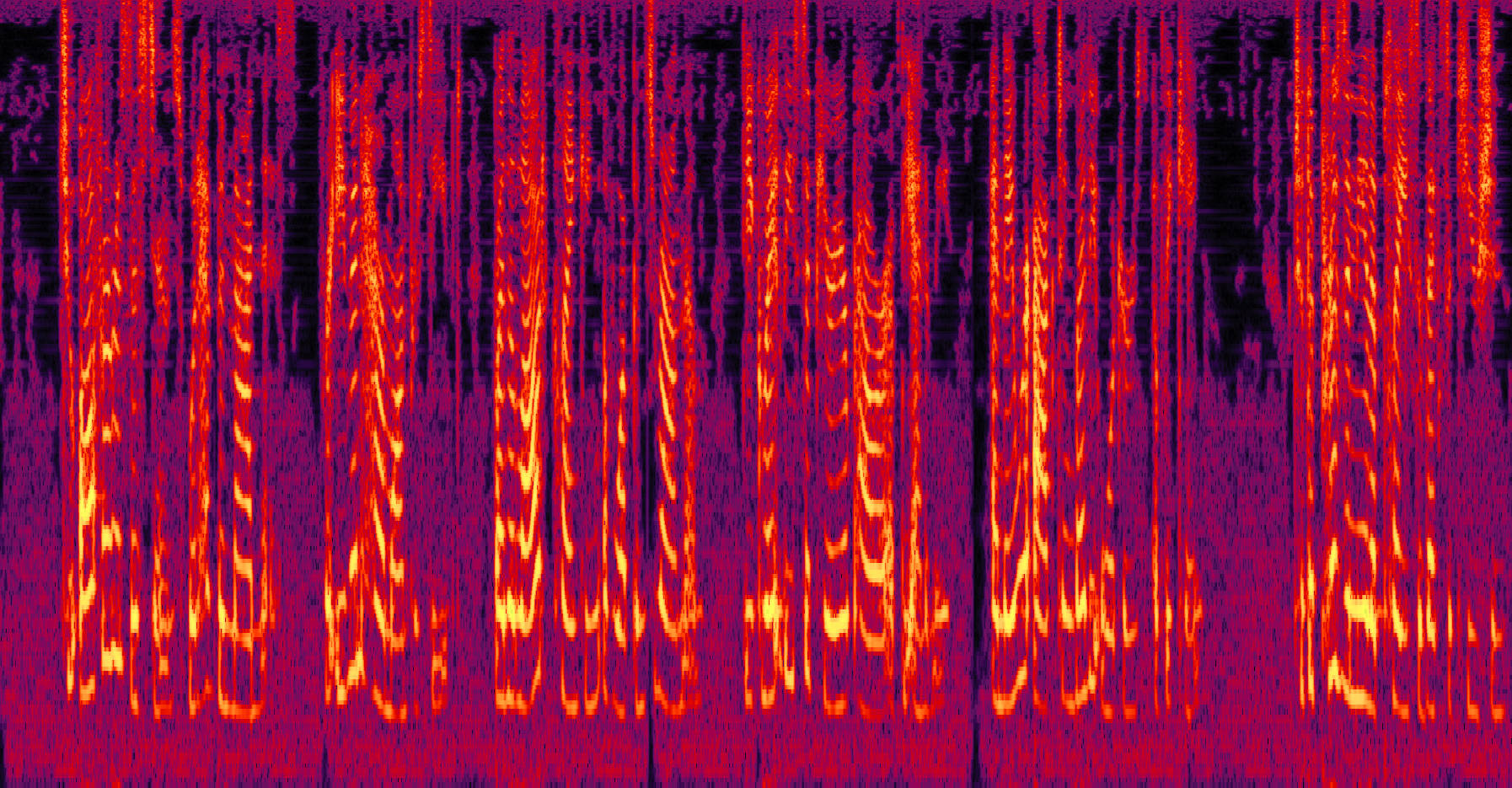

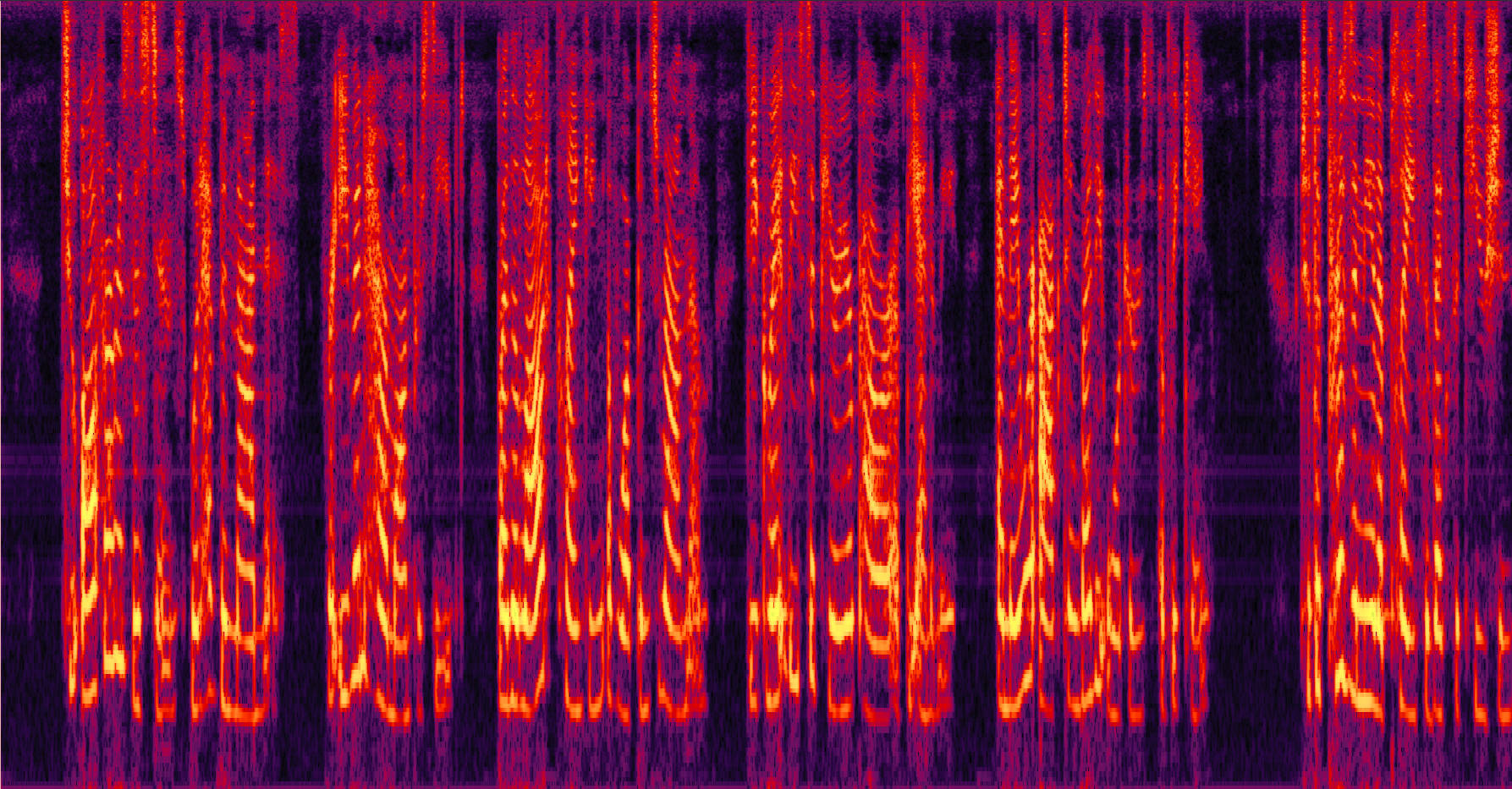

Specgram with watermark times

In this experiment, we add different watermarks to a piece of audio using AudioSeal, WavMark and WAKE(proposed) several times, and the spectrogram and audio are as follows.

AudioSeal WavMark WAKE(proposed)
Origin Audio Figure Figure Figure
Watermark 1 time Figure Figure Figure
Watermark 2 times Figure Figure Figure
Watermark 5 times Figure Figure Figure
Watermark 10 times Figure Figure Figure
